SKU: 15857

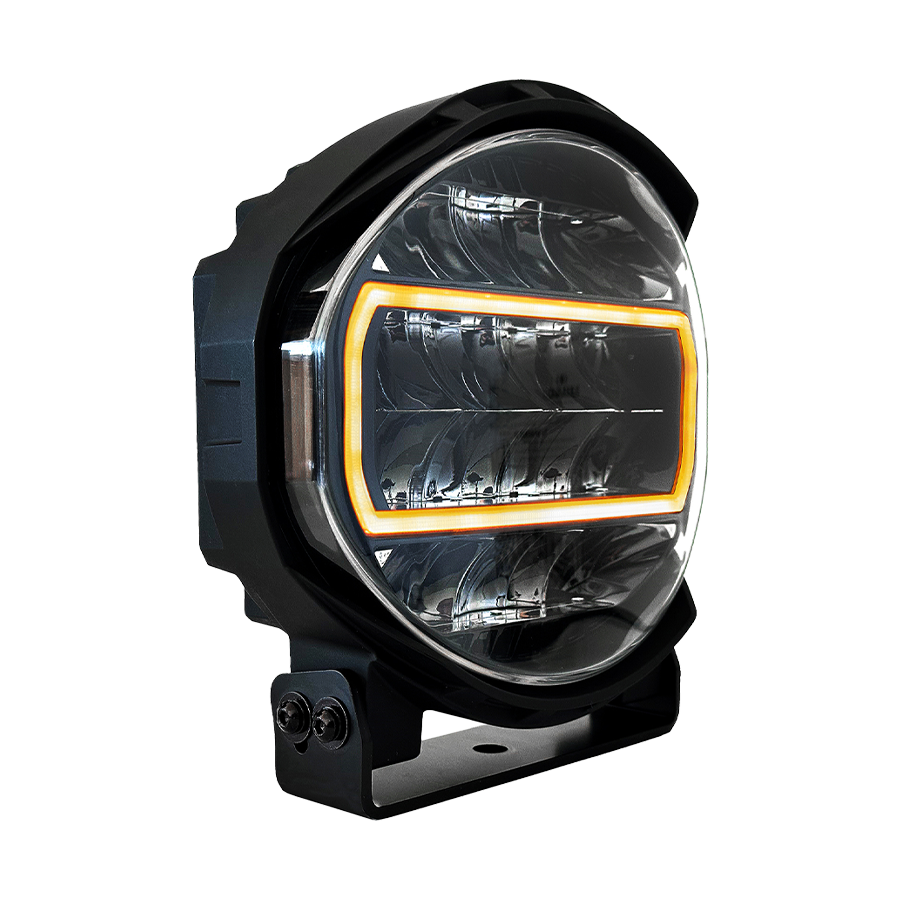

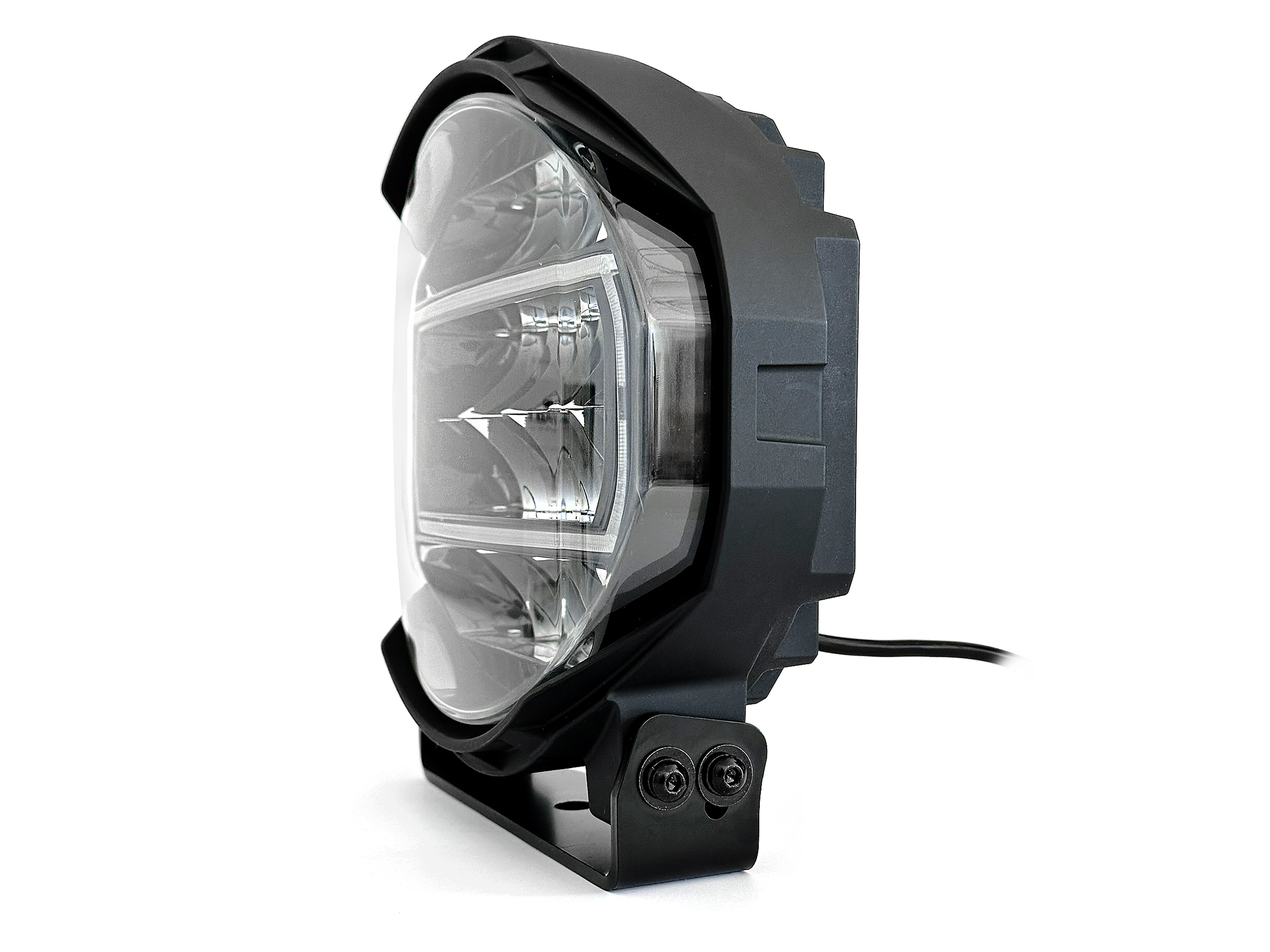

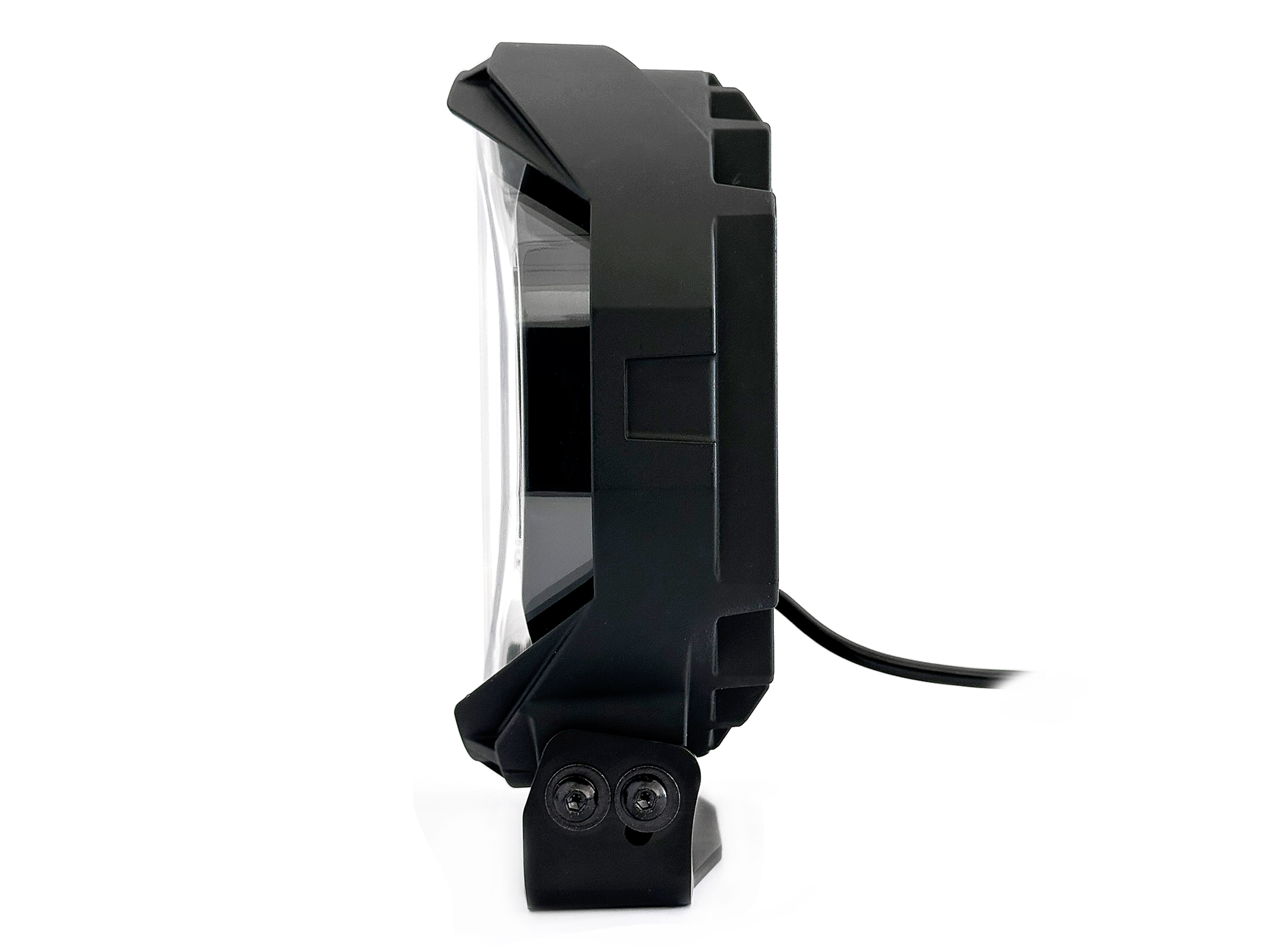

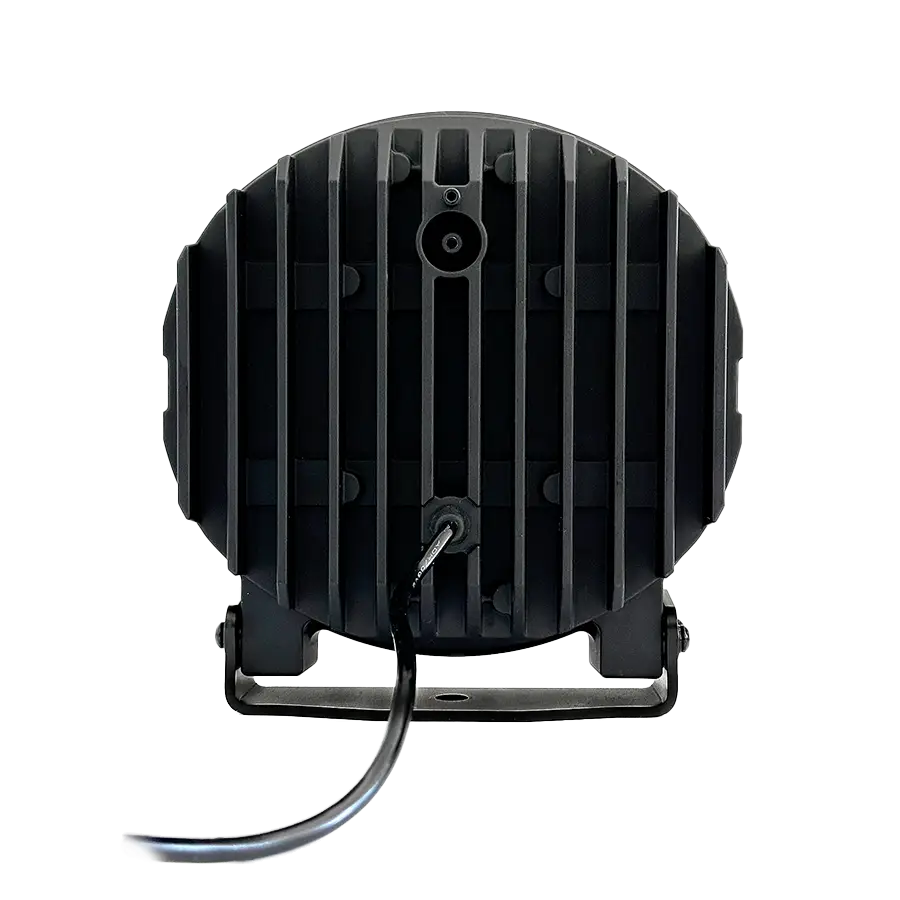

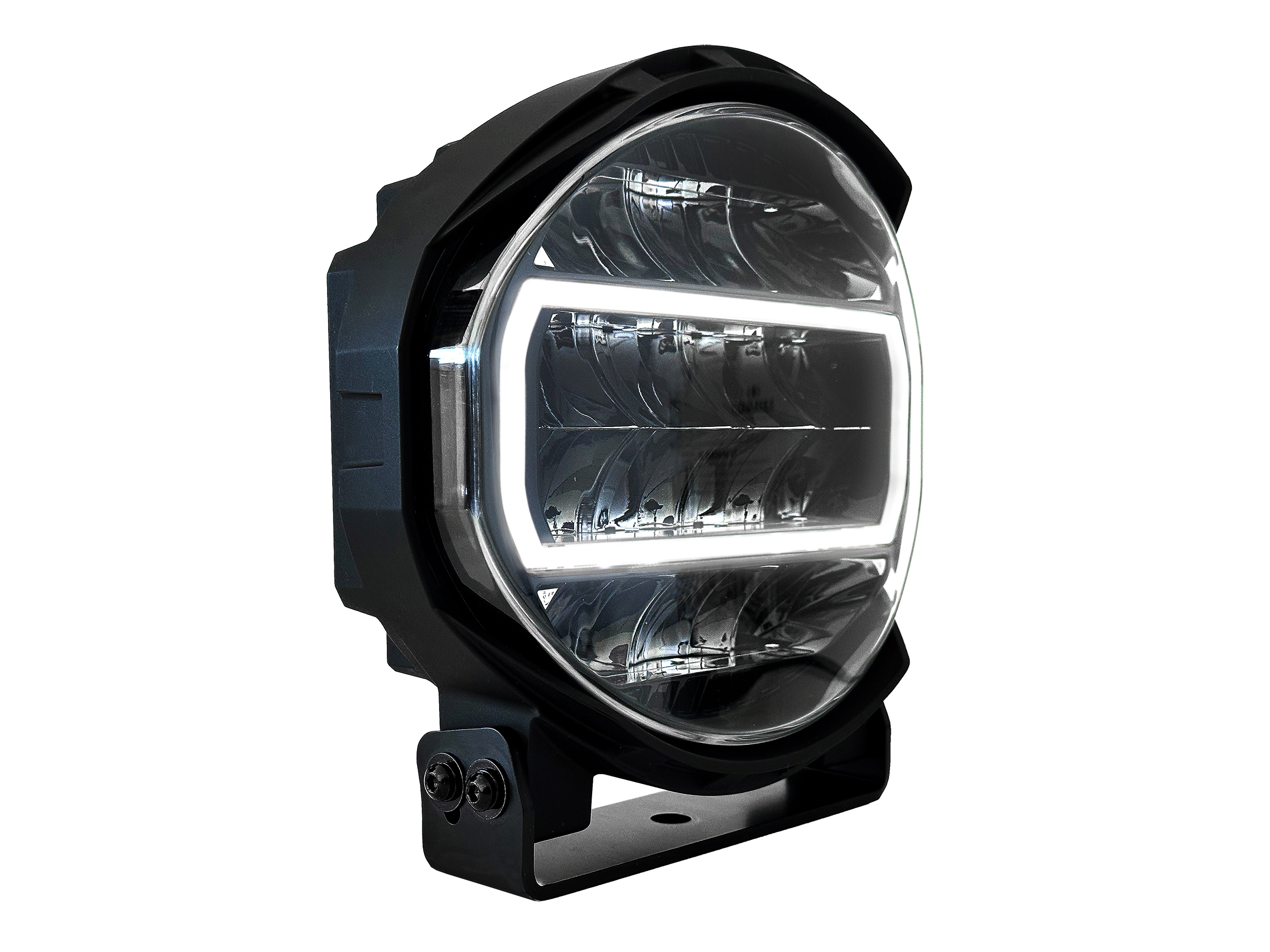

EDGE DRIVING LIGHT 9″

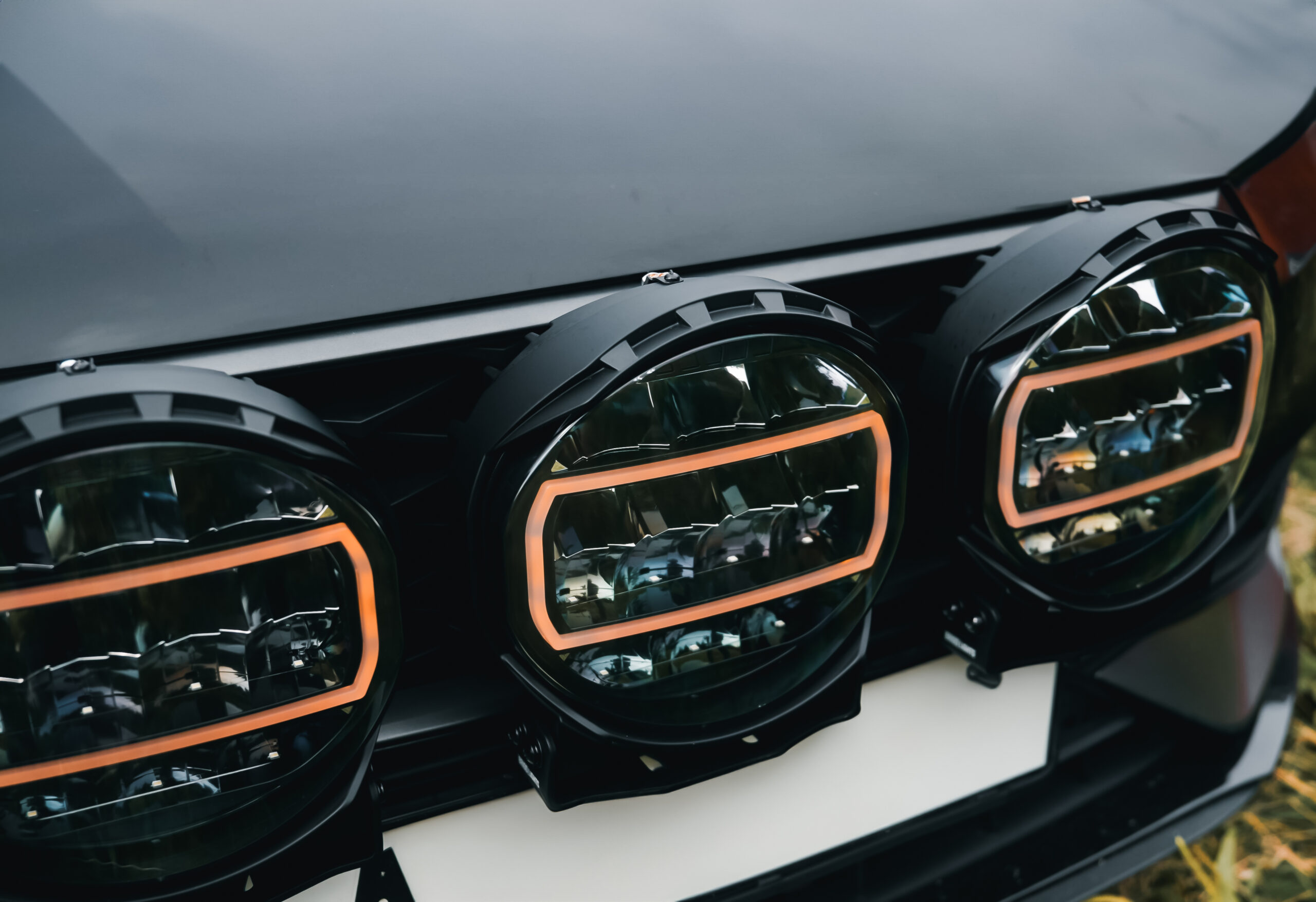

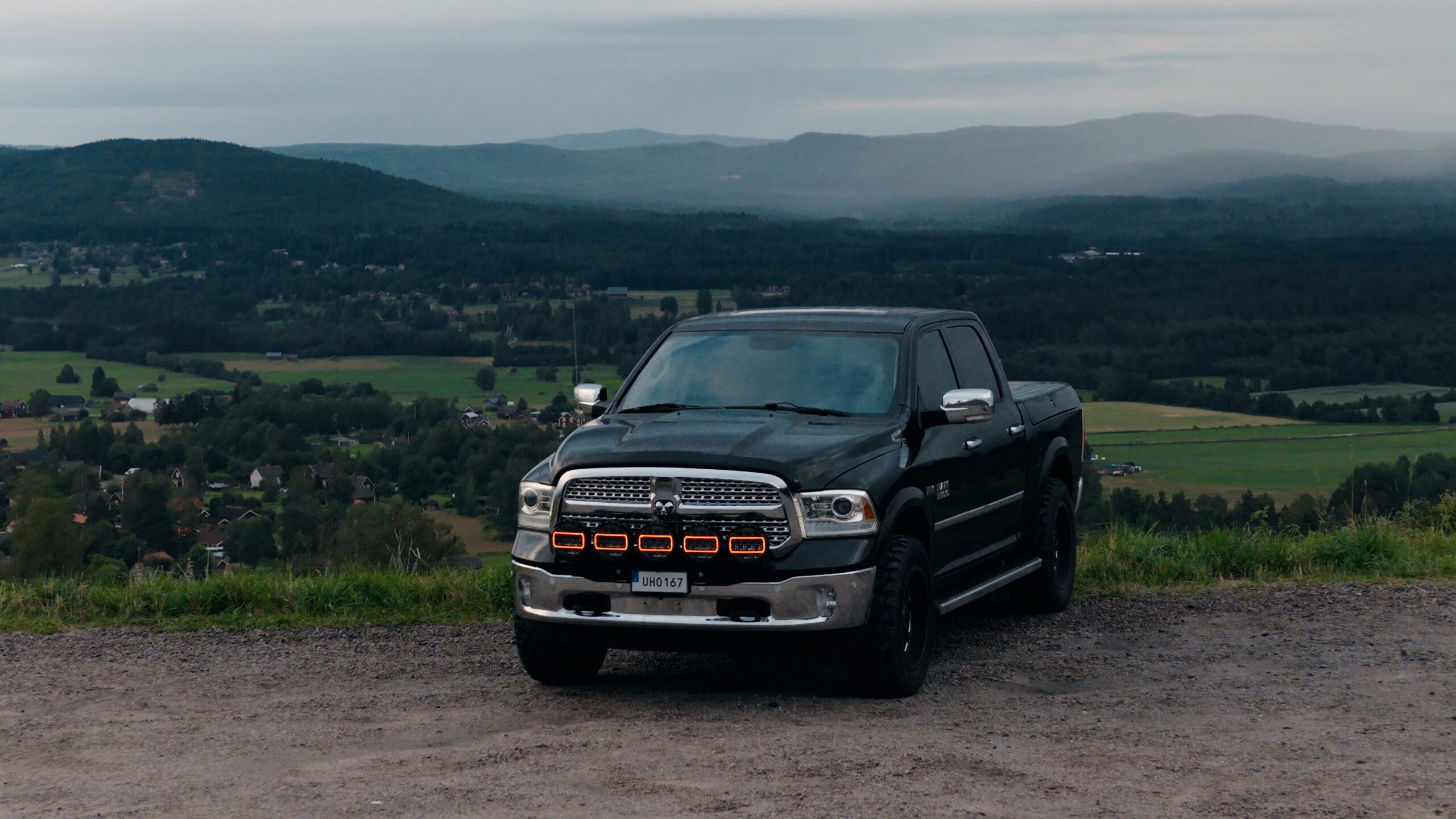

As part of the popular Edge series, BriodLights introduces BriodLights introduces a round driving light with powerful brightness. The Edge 9” driving light follows the same advanced optics as the Edge LED light bars, with light distributed evenly on and along the roadway without spill light. The driving light has dynamic position light in white and orange and is perfect for lighter vehicles such as passenger cars and light trucks.

3 year function warranty

Additional information

Diodes	14 st
Bulbtype	LED

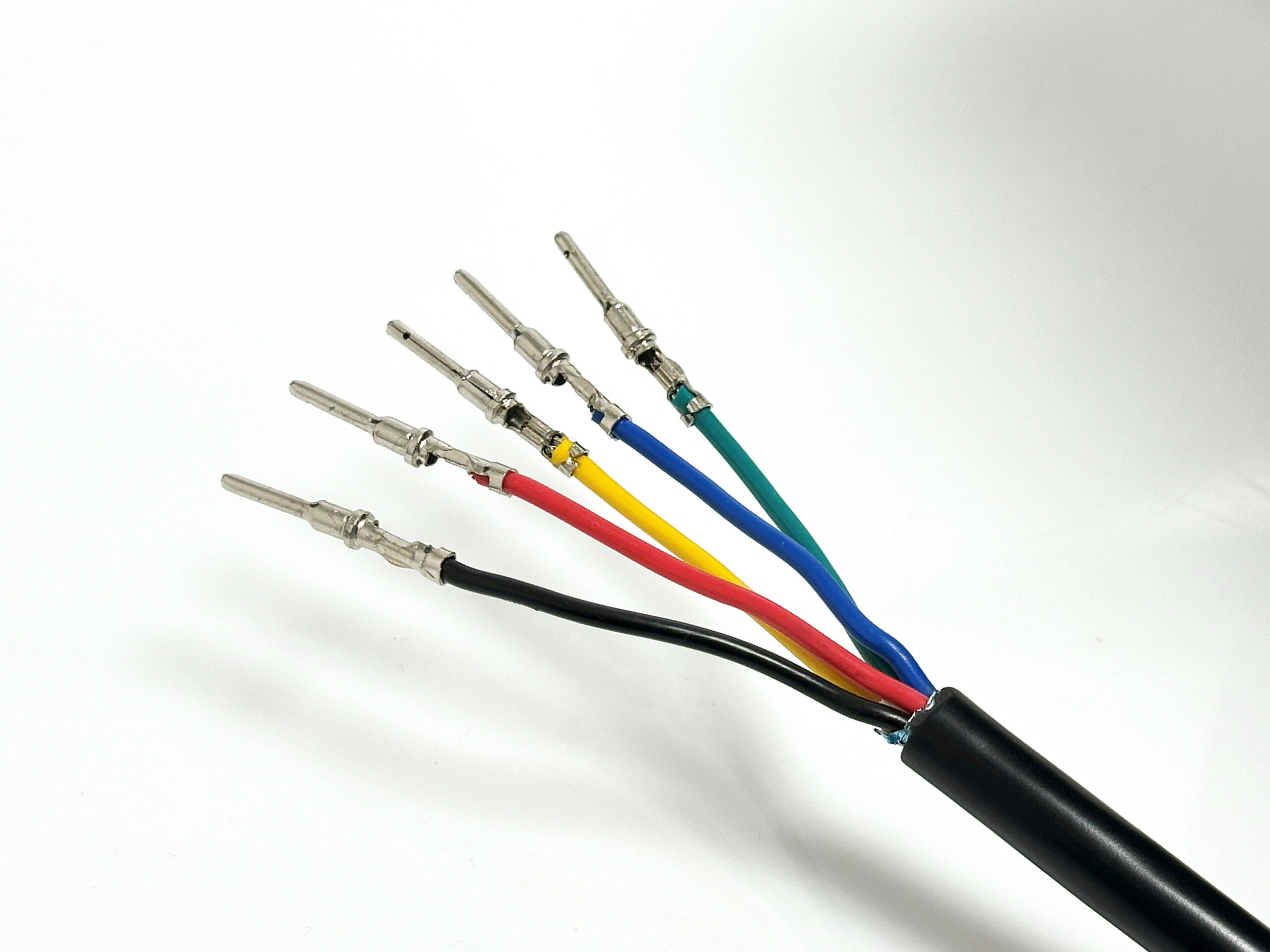

Connector	6-pin DT
IP-rating	IP68/69K
Voltage	9-33 V
Lens	PC
Colour Temperature	5700 K
Theoretical Lumens	11900 lm
Effective Lumens	6900 lm
Housing	Die-cast aluminium
Operating Temperature	-40°C till +60°C
Weight	2,3 kg
Watt	120W @ 12V, 97W @ 24V

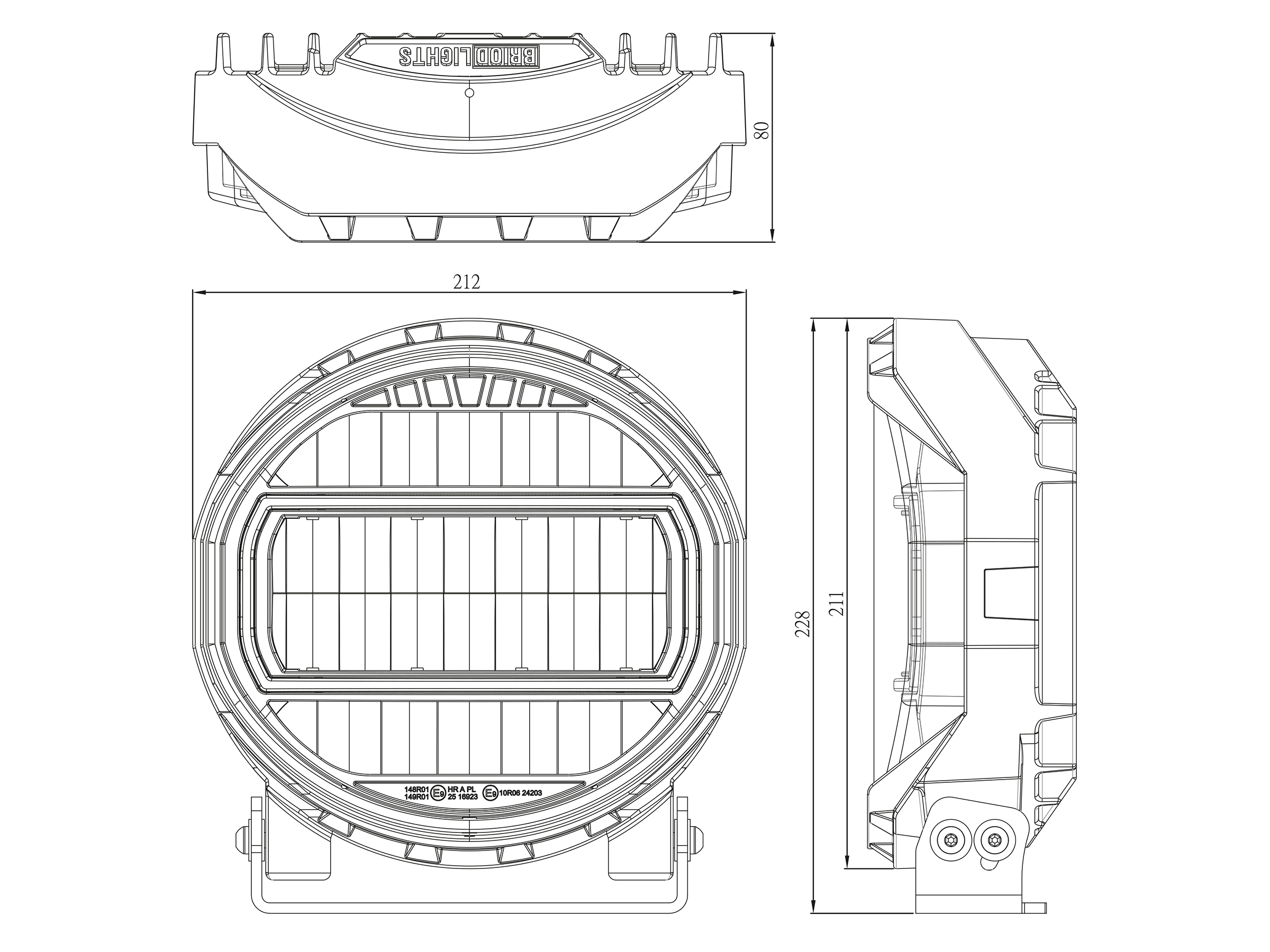

Diam	212x211x80 mm
Nominal Current at 12 V	10 A
Nominal Current at 24 V	4 A
1 lux at	644 m
Light Pattern	Wide Driving
