SKU: 15220

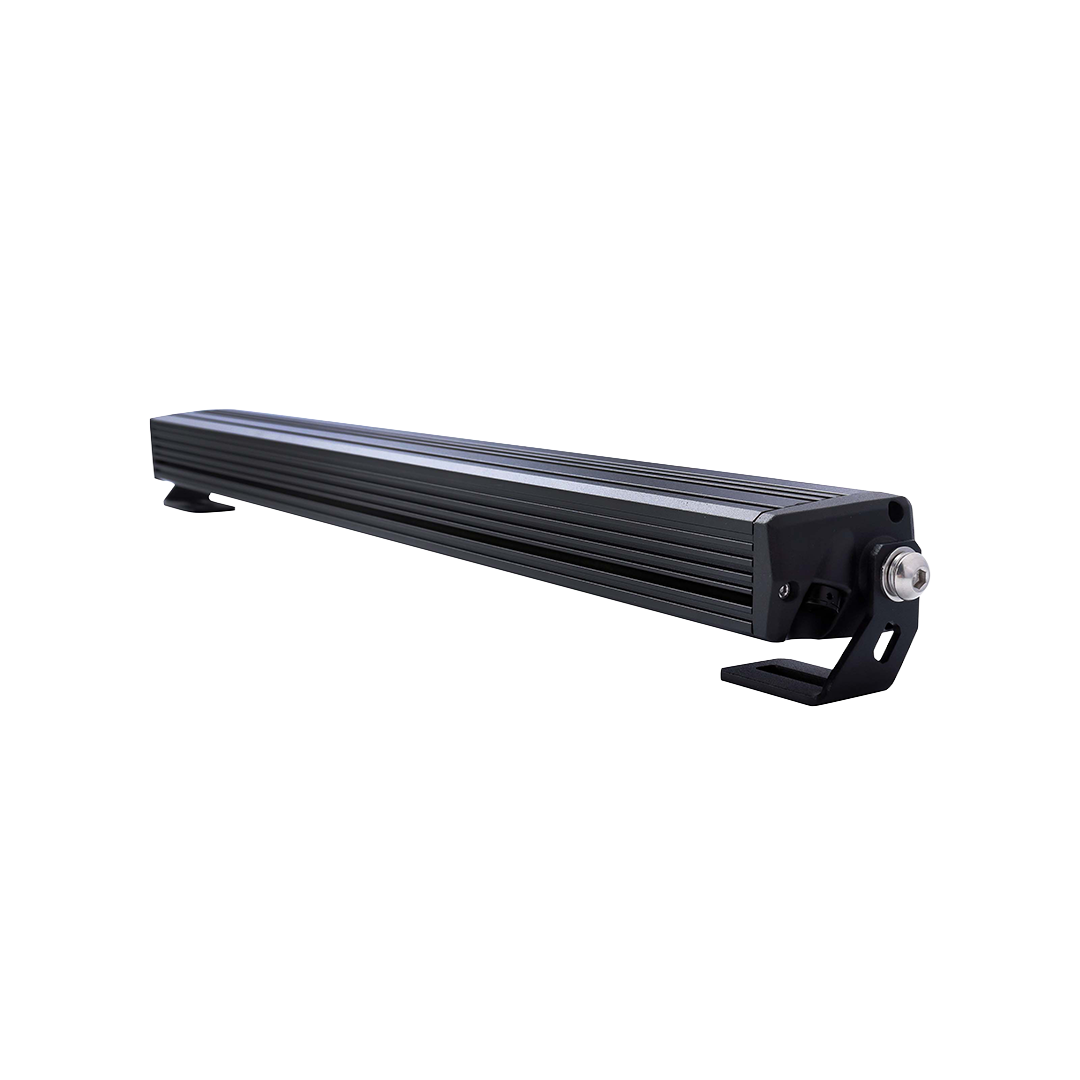

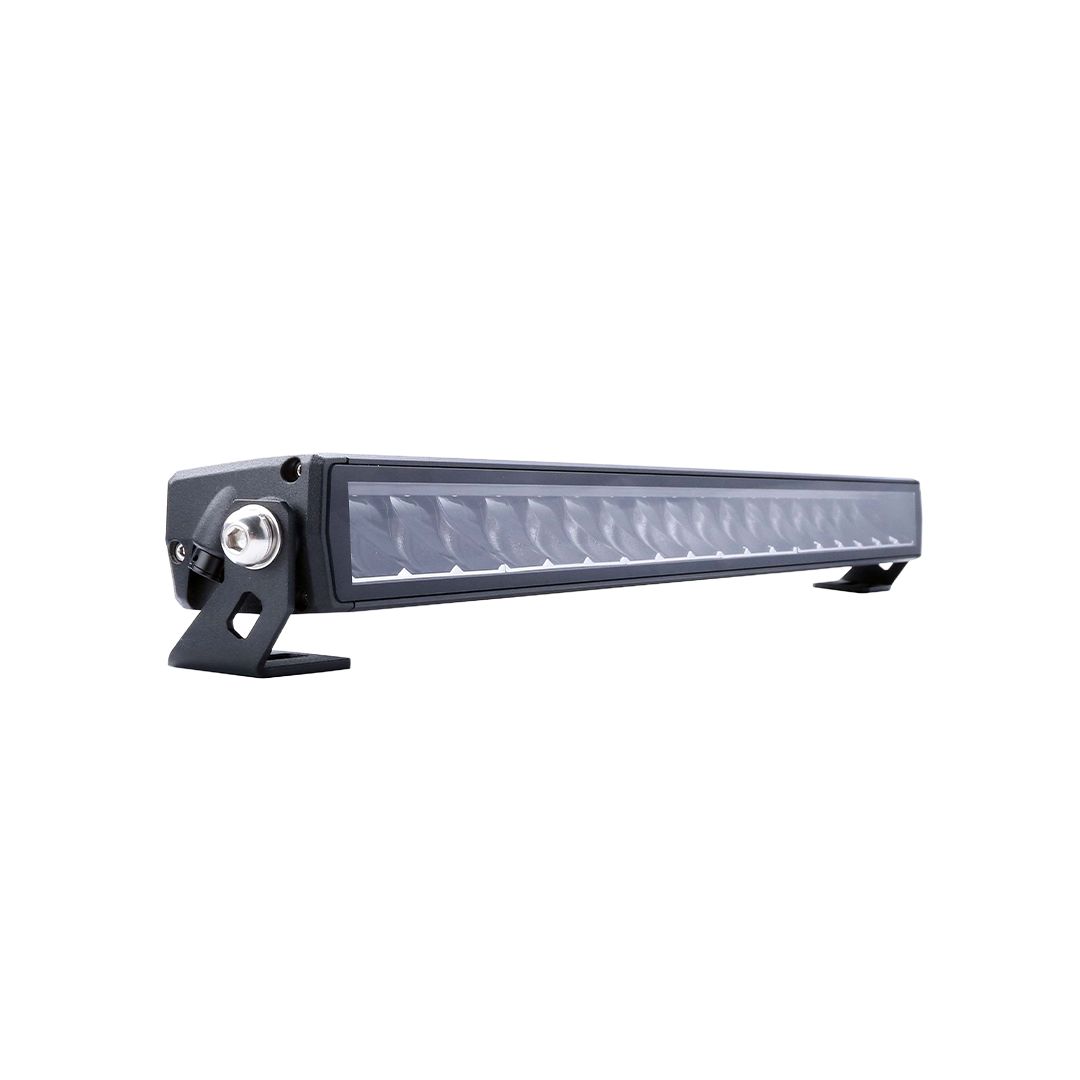

LED LIGHT BAR WITH POSITION LIGHT 520 MM

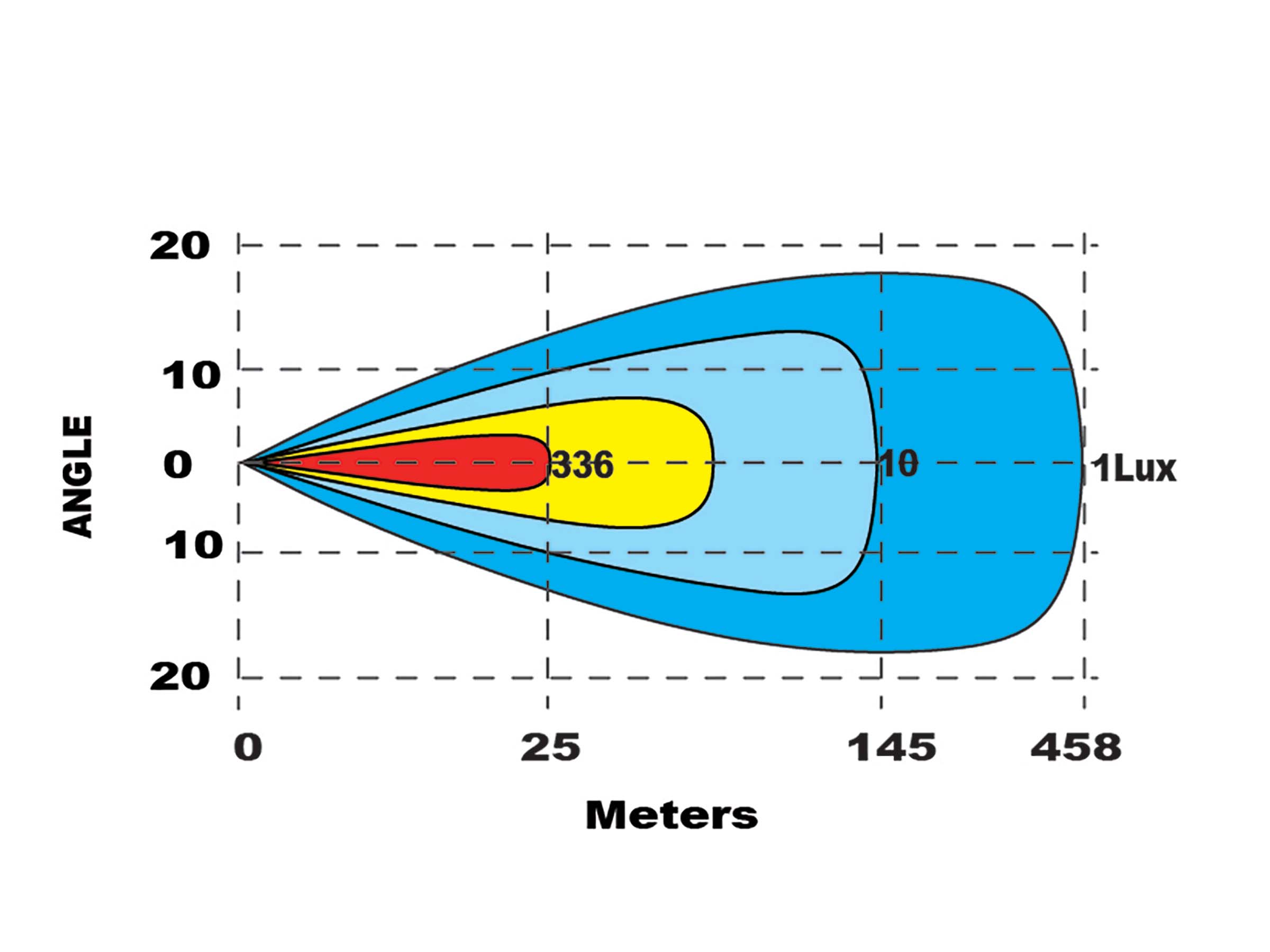

1 lux at 458 m
8100 actual lumens
Brackets for side and bottom mounting
4-pin DT connector

BriodLights LED Light Bar with integrated position light in white or amber delivers strong, controlled long-range visibility in a slim, easy-to-fit format. With a driving beam pattern, it reaches 1 lux at 458 meters and produces 8,100 actual lumens for confident night driving and improved safety.

Built for demanding conditions, the light bar features a durable construction and IP69K protection. Installation is straightforward thanks to included side and bottom mounting brackets, and connection is quick with a DT connector (4-pin).

✓ 3 year function warranty!

Additional information

Bulbtype	LED
1 lux at	458 m
Housing	Aluminium
EMC	CE / ECE R10/R112/R
IP-rating	69K
Operating Temperature	-40°C till +60°C
Kabel	1 m
Connector	DT
Colour Temperature	6000 K
Effective Lumens	8100 lumen
Diodes	12 st
Theoretical Lumens	9600 lumen
Nominal Current at 24 V	2,6 A
Nominal Current at 12 V	6,2 A
Watt	96 W
Voltage	9-36 V
Weight	1,1 kg

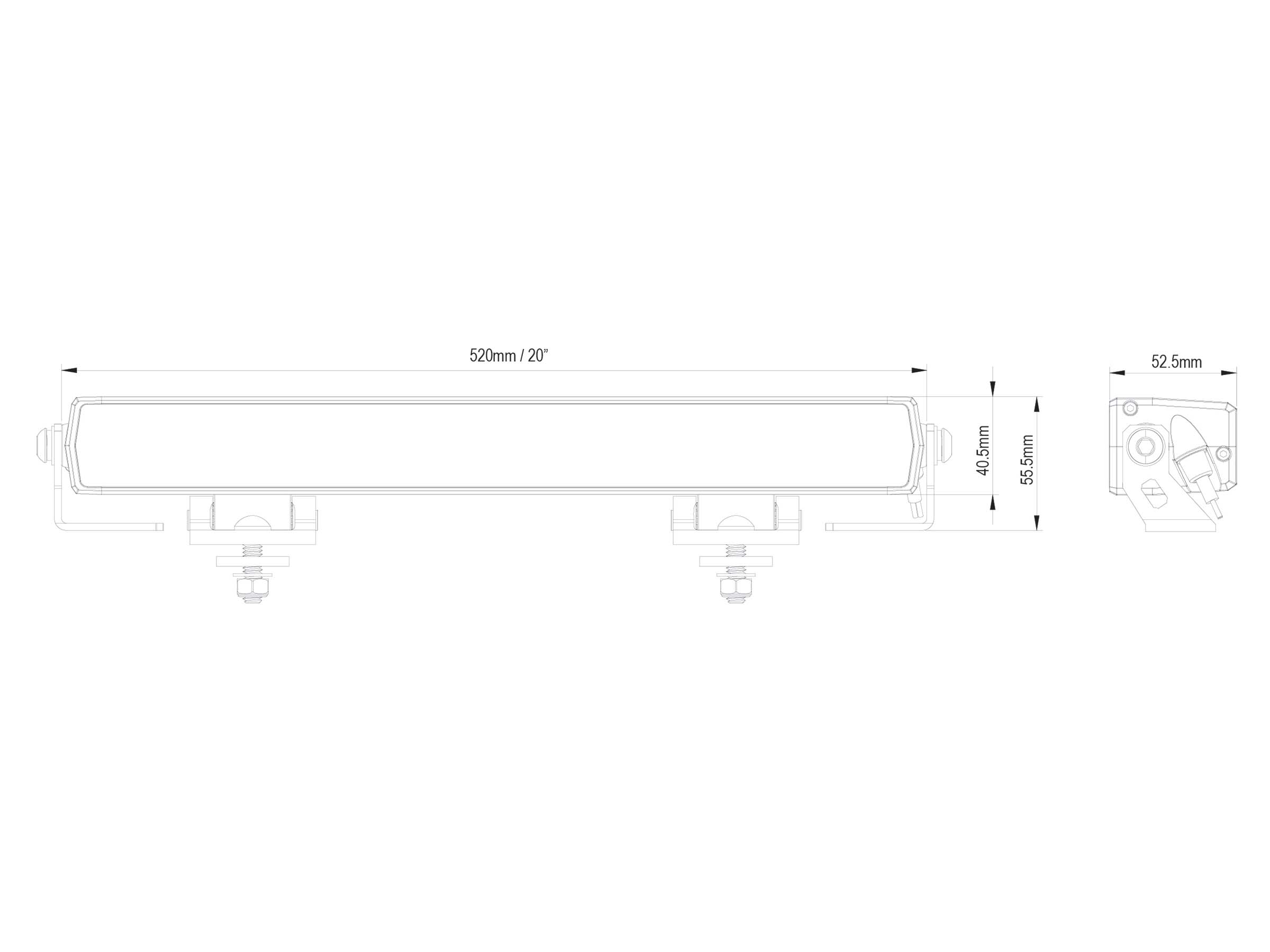

WxHxD	520×40,5×52,5 mm
Lens	PC
